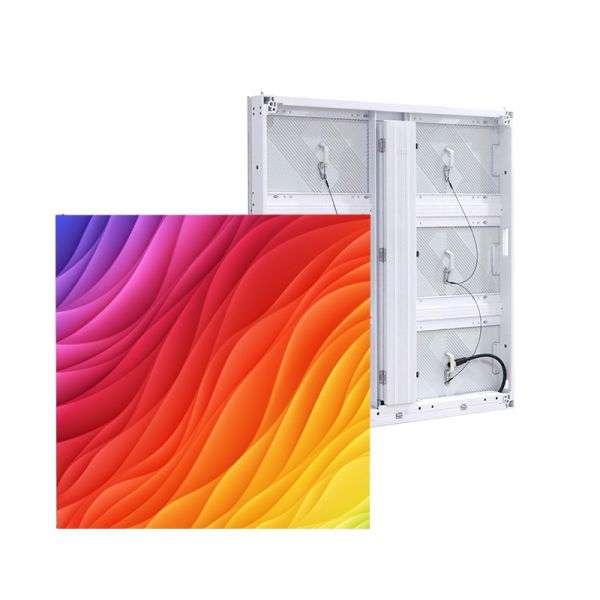

960x960mm Super Light Ultra Thin All Aluminum Cabinet Panel P5 P6 P8 P10 3840Hz Outdoor Led Screen for Advertising Display

Product Categories

Shenzhen DDW Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

960x960mm Super Light Ultra Thin All Aluminum Cabinet Panel P5 P6 P8 P10 3840Hz Outdoor Led Screen for Advertising Display

application : Outdoor

color : full color

supplier type : original manufacturer, ODM, OEM

media available : datasheet, Photo, EDA/CAD Models

Place of Origin : Guangdong, China

Model Number : DDW-FA

Brand Name : DDW

use : advertising publish, retail store, shopping mall, welcome display, exhibition hall, airport, subway, Restaurant & Hotel Supplies

function : SDK

pixels : 8mm

specification : Video Wall

brightness : 10000≥6500 cd/m²

Pixel Density : 30625dots/m2

Contrast Ratio : 5000:1

Color Depth : 1R1G1B

lifespan (hours) : 100000 hours

ip rating : IP65

resolution : 168*168dots/cabinet

view angle（h/v） : 160/160

Pixel Pitch : 5.7 mm

Module size : 480*320mm

Lamp type : SMD2727

Usage : Outdoor HD

Cabinet material : Die-casting Alumimum

Cabinet Weight : 28kg

Refresh rate : 3840Hz

Control system : Novastar System

Maintenance mode : Front or rear maintenance

Gray Scale : 14bit

Type : LED

Panel Size : 960x960mm

Contact Now

960x960mm Super Light Ultra Thin All Aluminum Cabinet Panel P5 P6 P8 P10 3840Hz Outdoor Led Screen for Advertising Display

Discover Your Right Application , Make Your Business Possible !

Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

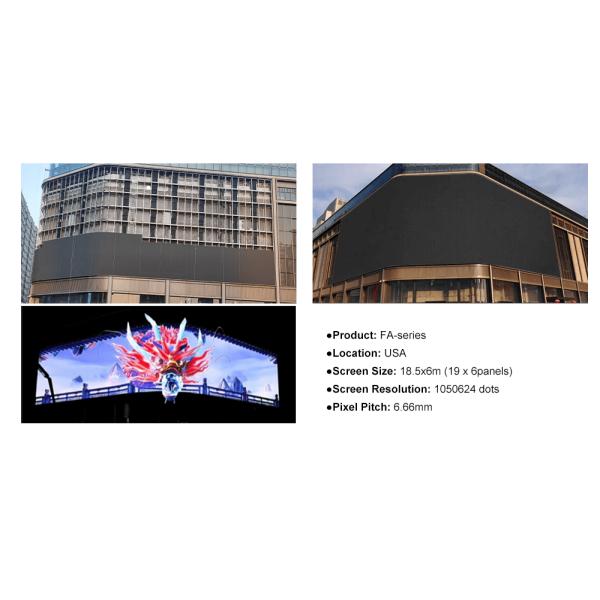

Project Case

Rental LED displays have been exported to many countries and rigions in the World, and we are highly praised by our customers.

Products Description

Part Number	P5.7	P6.66	P8	P10
Pixel Pitch	5.7mm	6.66mm	8mm	10mm
LED Configuration	SMD2727
Pixel Density	30625dot/m2	22500dot/m2	15625dot/m2	10000dot/m2
Module size	480*320mm
Module Resolution	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size	96096077mm
Cabinet Resolution	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight	28kg
IP Rating ( front/back)	IP65
Brightness Intensity
Viewing Angle (H/V)	140°/140°
View Distance	＞5m
Gray Scale	14bit
Display Scale	16.7M
Brightness Adjustment	0-100 levels adjustable
Max.Power Consumption	650W/㎡
Ave.Power Consumption	200W/㎡
Drive Mode	1/7S	1/6S	1/4S	1/2S
Refresh Frequency	≥3840HZ
Gamma Correction	-5.0~+5.0
Environmental	OUTDOOR
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20℃~+50℃
Operating Humidity	10~95% RH
Operating Life	100,000hours

Company Profile

About Us

Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
